please select HUIYUE transformer bushing auto through machine manufacturer.

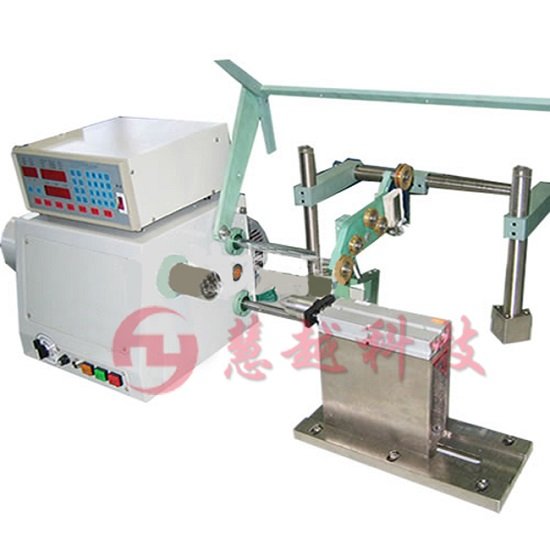

HY-R08 transformer large torque Winder Details
Large torque Winder

  Brand: Hui Yue Technology
  Model: HY-R08


A Product description:
  1. Suitable for ballast, rectifiers and other large coils, transformers:
  2. Taiwan controller, AC frequency, AC motor, environmental protection, low noise;
  3. Multifunctional microcomputer design, easy to set data and shut down to save data;
  The didactic function design, can be easily set from around the point and width;
  5.0 to 999 step sequence set capacity, with a powerful AC motor imported from Japan Sanyo stepper motor, can easily set is reversed, the winding density across the slot and work;
  6. Large torque, using thick lines products for planes, the largest 3.0mm diameter can be wound products.
  7. Powerful tailstock, ensuring strong clamping and rotary accuracy.

Second, product specifications:
  1. The diameter range (mm): 0.5-5.0 are used (standard diameter 3.0 can be customized according to customer requirements)
  2. The maximum speed (rpm): 1200
  3. bobbin: 1
  The spindle motor: AC 750W / 1500W
  5. Winding Width (mm): 120
  6. row around the motor: 9V Stepping Motor
  7. Cable Width (mm): 210
  8. Weight (kg): 65

III. Delivery
  Hui greater torque Winder shipping methods: 1. The Company free home delivery.
                            2. wooden packing logistics are sent (to ensure perfect, lossless)
IV. Testing and certification
  Large torque hui Automation Technology of the winding machine factory have long inspection test, control of electricity to run machinery have professional QC inspection recorded in the register.
