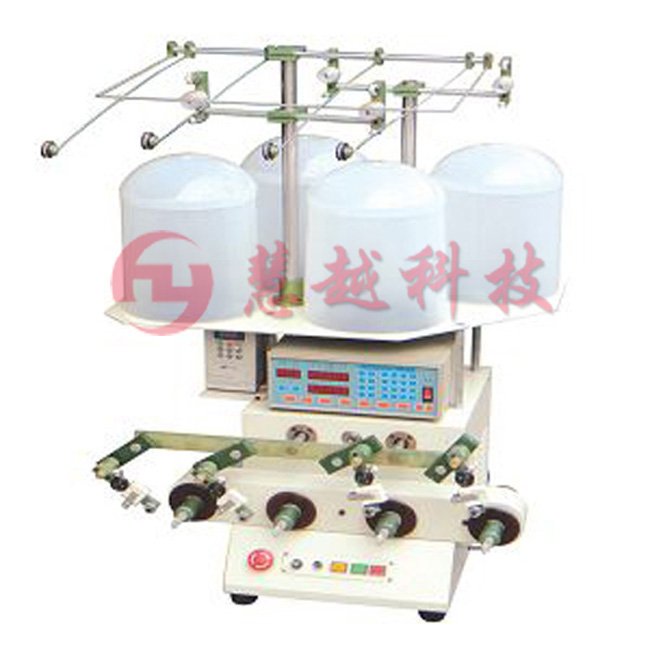

HY-R09 CNC front axis winding machine Details
Front axis CNC winding machine - Product parameters:
Function: The controller uses the latest synchronization with the lotus-type cable, high precision, ultra-intelligent mode, a self-test function, including setting
Error, speeding track and speed than the standard, with a speed detection function, can automatically cut the spindle speed to the most stable state.
Diameter range: 0.03-1.0mm
Cable distance: 0-100mm
Roll diameter: 80mm
Standard wire diameter: 1 axle 0.03-1.0; 2-axis 0.03 to 0.6; 3,4-axis 0.03-0.4
Count is: 1000 group memory settings
Back Spindle speed: 0-5000RPM
Motor: DC 1 / 2HP
Power source: 220V 50HZ
Mechanical Dimensions: L620mm * W1000mm * H750mm (not including wire frame)
Weight: 62.5kg
Note: Which spindle motor are: brush, brushless, frequency optional; other axes optionally 1-4
