HY-B03 tape machine belt tension relaxation package Details

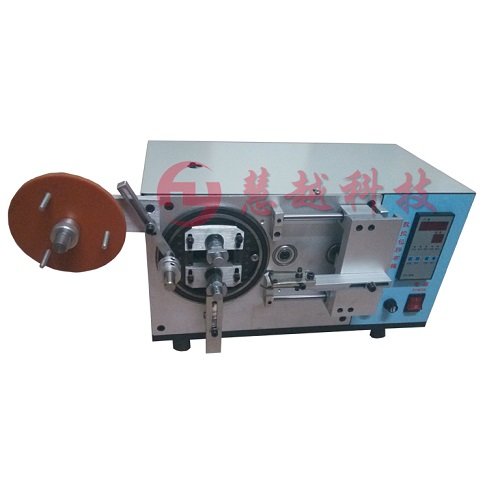

HY-B03 tape machine belt tension relaxation package

Belt tension relaxation package tape machine Details:

Product Specifications: Automatic taping machine

Power: AC220V / 50HZ

Working speed: 2set / pc

Tape inner: 34-77mm apply

External dimensions: L550 × W300 × H260mm

Weight: about 45KG

Features: 1, two-axis package tape, tape axis can be adjusted from the word 25-85mm,
                2, viscose fabric from the position can be adjusted, the tension is adjustable.
                3, different products, just switch to a different fixtures, intimate and line transformer can pack taping.

First, the device name

Automatic taping machine

Model: HY-B03

Second, the device size

Approximately 300x 550x high 250mm wide

Weighs about 46KG

Third, the basic equipment requirements

1, input: AC220V, frequency 50HZ

2, high reliability CNC-830 Controller: High fixed speed three-axis motor drive gear box, large output, stable operation, high reliability. Operational simplicity, easy management and maintenance fault information display.

3, positioning sensors traditional: micro switch replacement sensors

4, number of packages apron can be arbitrarily set, (the speed can be adjusted)

5, for a package of plastic relaxation of elastic tension device regulation. (You can control the bubble plastic bag, etc.)

5, any vertical, horizontal transformer Jieke plastic bag, and the replacement of species simple, rapid, suitable for diverse operations.

6, the body includes: manual and automatic functions


Fourth, the functional description

HY-B03 automatic package tape machine used in package high frequency electronic transformers, coils and so on.

Efficiency requirements (capacity requirements): Hourly: 1200-1400pcs

Five, institutional materials and electrical materials

A major part of the use of A3 material

2, other S45C hard chrome plating

3. PLC operation controller
