Yan Ling Electric cylinder vacuum impregnation machine production is completed delivery Case Details
Yan Ling Electric Co., Ltd. of summer and the end of September 2015 total ordering our a fully automatic cylinder vacuum impregnation machine, on October 12 formally successfully delivered Yan Ling Electric Co., Ltd. production use, then let's look at Hin Ling electrical development process:

Yan Ling Electric Co., Ltd. is located in Zhejiang Province, "China's low-voltage electrical appliances," Liu City, Zhejiang Province, is a research, development, production, and sales of non-regional joint-stock enterprises.

       Company Industrial Park covers an area of 63,500 square meters, construction area of 72,800 square meters, has a number of joint ventures and holding companies, 's "Yan Ling", "Yan Tai", "GKG" and other acclaimed brand in the industry, which "welcomed Ling "trademark has been judicial determination as" China Famous Trademark ", the relay product was named" national-free products. " The company's quality system has been with international standards, passed ISO9001 in the same industries and enterprises: 2000 international quality management system certification and the Netherlands RVA, the products have CE, 3C, UL, TUV and other international certification.

With the development of society, we will be more efforts to provide customers with reliable, stable product and a full range of professional services. Our goal is: to become the trust of users, with a high-tech enterprise-class research and development capabilities, and to keep alive pragmatic innovation, forge ahead in the spirit of creating a century Yan Ling, and make unremitting efforts!

       Yan Ling Electric has more than 50 stores in Zhejiang stores, mainly to do with relay products, instruments, motor protectors, circuit breakers, soft starters and other products, after years of operation, Yan Ling in service in cities center and logistics center as the backbone of sales and service system has shown strong support force, across more than 280 cities nationwide sales and service network to meet the diverse needs of customers. Yan Ling Electric now increase automatic vacuum impregnation machine, can greatly improve production efficiency, but also can greatly improve the aesthetic effect of its products, so Yan Ling Electric homegrown high-frequency transformer no traces of varnish, that I come to the following Yan Ling electrical work to see pictures and video of the product:



浙江欣灵电气门市部

欣灵电气生产现场

欣灵电气生产现场2

欣灵电气生产现场3

欣灵电气系列产品



undefined



That Here we look at our HY-Z03-cylinder automatic vacuum impregnation machine technical parameters and details of high-definition picture:


HY-Z03-cylinder automatic vacuum impregnation machine sizes


Cylinder volume: L710 * W540 * H300mm
Dial size: L660 * W530 * H105mm
Single Cylinder Size: L950 * W660 * H1160mm
Controller size: L500 * W540 * H1300mm
Hanjin Machine: Approximately 2600x width 660x height 1300mm (about weight 450KG)
Standard impregnated Height: about 80mm (height can be customized according to customer requirements)

Basic equipment requirements

1, input: AC 380V 3 phase 4 wire 50Hz;
2, power: 1HP;
3, fast switching AirTAC cylinder cover. Surrounded by silicone rubber seal cover, fast sealing;
4, using a stepper motor driven precision ball screw drive sub tank lift impregnated, lifting height can be preset; can be preset lift height (sub-groove largest travel 60mm; displacement accuracy ± 0.05mm);
5 ,. screw jacks to withstand force, control accuracy, PIN will not glue varnish without secondary tin;
6, the entire Chinese PLC control, impregnated with a variety of preset modes, intelligent vacuum, to no bubbles varnish impregnated beautiful effect.;
7, automatic switch cover, the second automatic vacuum, time-saving, environmental protection, energy saving, can achieve single multi-machine operation;
8, the overall use of slot 10MM steel production. Double glass viewing window can always see soaking conditions;

Function Description


1, impregnating time can be set;
2, with a time alarm, motor overload protection and lack of protection;
3, the exhaust gas recovered by filtration, with environmental protection, recycling double-effect function;
4, product storage up to 500;


Organization of materials and electrical materials

1, the main part A3 materials, surface spray paint green vertical lines (bright white and dark gray can be selected);
2, some parts made of cold rolled plate;
3, all electrical appliances Chint brand;
4, all Chinese PLC controller operation, in which the controller parameter settings, please click: vacuum impregnation machine PLC controller parameter settings screen;



HY-Z03双缸全自动真空含浸机

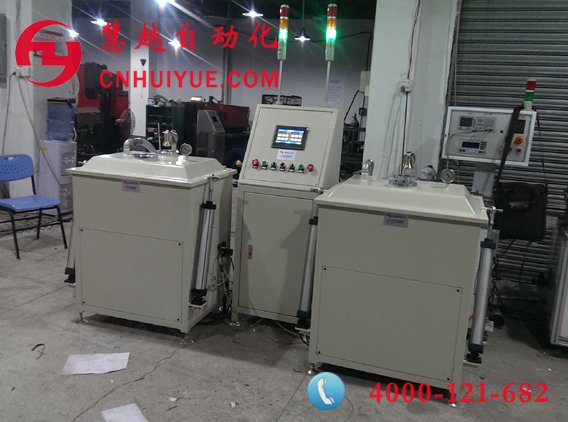

双杠凡立水浸漆机

空气过滤器

十五针连接口

双玻璃观察窗

水液式气压表

环保低功率灯泡

灯泡连接线

正泰品牌继电器

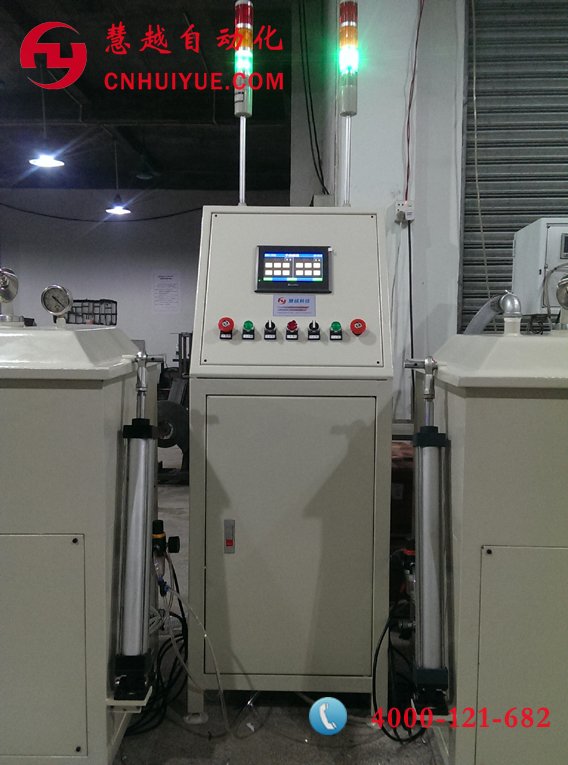

含浸机控制器
