please select HUIYUE transformer bushing auto through machine manufacturer.

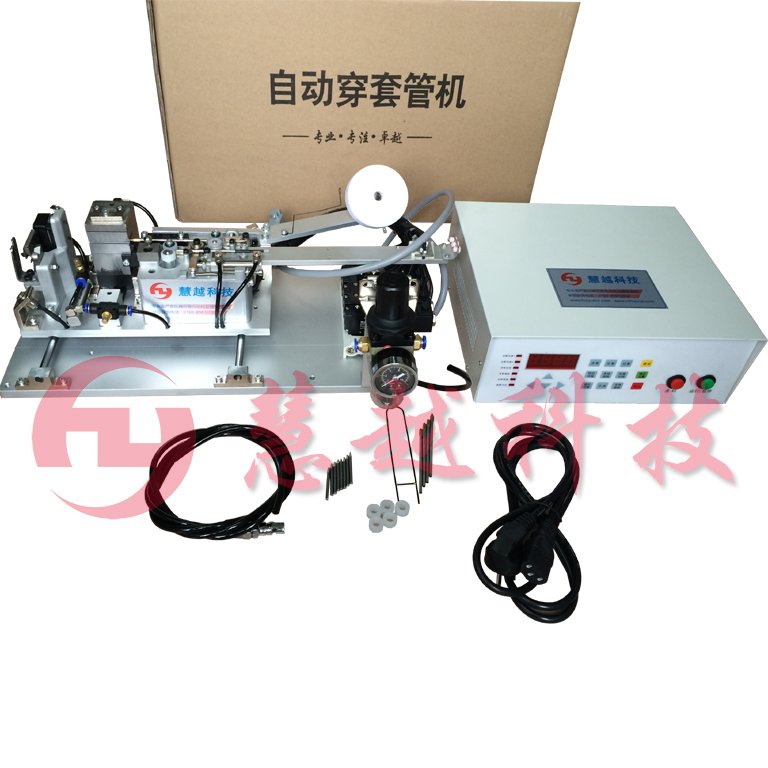

HY-R20 Automatic wear bushing machine Details
HY-R20 automatic wear bushing machine Introduction
Automatic wear bushing machine on an existing installation of CNC Winder contrast casing wear mechanism for the production and use of the existing mode of production, the agency will use the copper wire will Touchan in PIN feet and unloading of the whole period Automatic sleeve cut to length, and the copper casing head automatically put aside, artificial boost in boot foot copper copper wire hanging his head had been wearing a sleeve, just hand at the same position in the cable (This action takes less than 0.5S) at the sleeve can be used directly.

Automatic wear bushing machine - parameters:

Machine Model HY-R20
Operating voltage 220V 50HZ
Pressure Requirements 0.5MPa
Accord diameter 0.1-1.0mm
Working Principles casing diameter multi-strand diameter ≧ + 0.12mm
The number of shares following the work of 60
Teflon tube for 14L ~ 30L
Machine size 250 * 110 * 130mm
Machine weight about 12KG


Automatic wear bushing machine - Features:
1, microcomputer control, easy to operate.
2, all Chinese CNC monolithic control display
3, the sleeve length adjustable size, precise size.
4, copper adjustable, suitable for most wear bushing transformer production.
5, with CNC easy to use, quick, quality assurance, and improve productivity.
6, sleeve length can be arbitrarily set, the whole story ends can be selected.
7, this automatic machine can wear sleeve at the second delivery tube.
8, this machine is suitable for any brand of firing-line, direct installation you can use. Very convenient.
9, very powerful: automatic feeding tube, automatically cut off, automatic wear sleeve.
10, leads automatically sent, auto-complete work wear sleeves.


More intelligent automatic wear bushing machine more technical parameters, please continue to click concern: http: //www.cnhuiyue.com/
