please select HUIYUE transformer bushing auto through machine manufacturer.

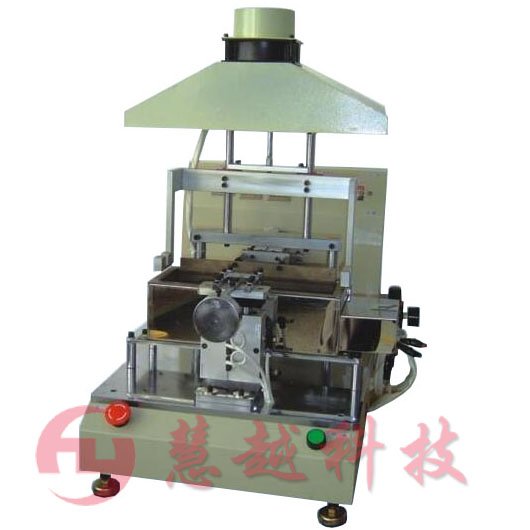

HY - for H13 cylinder type automatic solder machine applicable products: high frequency, low frequency transformer, inductance coil, relay, filters, inductors, rectifier, inductance coil.

Stepper motor + ball screw, and fast.

Can be set soldering time. Heating pipe for the removable, easy replacement. (adopted son type tin cups, tin bath) of type of mother

High temperature resistant titanium alloy tin furnace, up to 600 degrees.

Adopt computer CNC control system, can take 1000 groups of step sequence with stepper motor memory, can access the different ways of multistage set solder.

You can solder on any vertical, horizontal transformer.

Replacement of varieties of simple, rapid and suitable for various assignments.

The LCD panel, easy to operate.

PID temperature control, tin stove temperature stability.

DIP function, improve the icicles.

Can increase the transverse institutions.

Artificial feeding, automatic rosin

Automatic pressing (plus rosin)

Automatic material return, stepper motor

Material: tin stove titanium alloy

Effective solder area 295 (L) * 105 (W) * 105 MM (H)

Set the minimum scale 0.04 mm

The rate of 6 to 20 PCS / 8 SEC

Apply the product makes

Power AC 220 v 50/60 hz 1.5 KVA

Pneumatic 4-6 KGF/cm2

The weight of 65 KGS

Mechanical dimension

545 (L) x 870 (W) x 625 mm (H)

HY-H01 无铅自动恒温锡炉

HY-H02 翻转式自动焊锡机

HY-H03翻转前推型自动焊锡机

HY-H10 全自动翻转式焊锡机

HY-H11 半自动拨锡焊锡机(经济型)

HY-H12 自动加松香型沾锡机

HY-H13 气缸式自动点锡机

HY-H15 四站式自动浸锡机

HY-H16 六站式自动浸锡机

HY-H03焊锡机出口俄罗斯
